THE TITAN PRODUCT FAMILY
Hardware-Level Power Protection for the AI Era
Five purpose-built products. One unified Digital Electricity® architecture. From 500W edge receivers to 6kW transmitters powering 30MW AI data centers — every component is designed for fault isolation in under 10 milliseconds.
TRANSMITTER SERIES
The Power Conversion Brain of Every Deployment
Titan Transmitters convert standard AC power into Digital Electricity® packets — safe, fault-managed, digitally controlled power that travels over standard cabling to receivers at the point of load. Each channel is independently monitored and isolated in under 10ms.

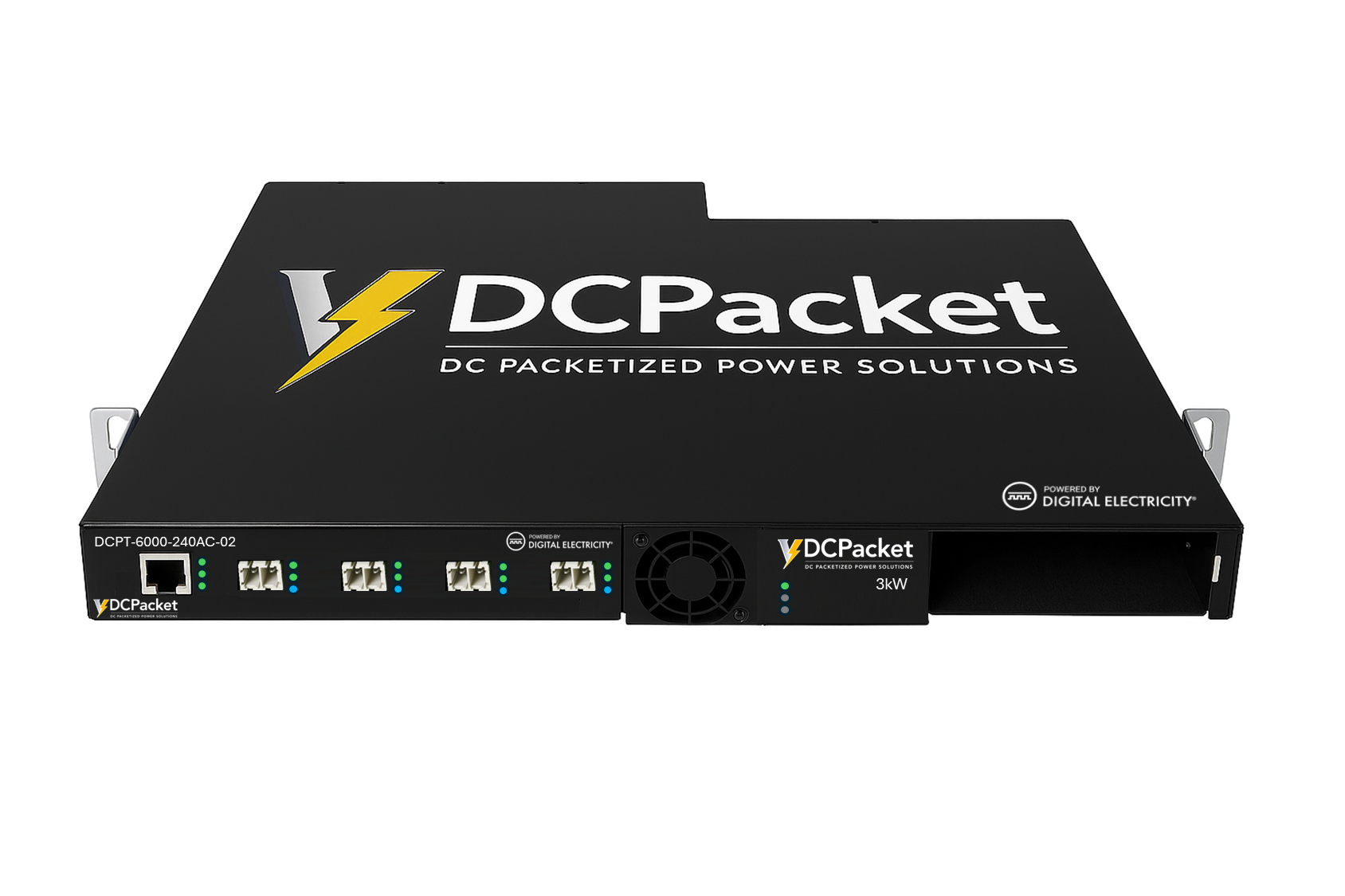

⚡ DCPT-6000-240AC-02
CLASS 4 TRANSMITTER • 6kW
The flagship transmitter. Converts 100–250V AC into four independent Digital Electricity® output channels at 315–350V, with per-channel fault isolation and real-time telemetry.
| Input | 100–250V AC, 50/60Hz |
| Output | 315–350V DE, 4 channels |
| Max Current | 4.68A per channel |
| Form Factor | 1U Rackmount |
| Certifications | UL, CE, FCC, RoHS, UKCA |
🔋 DCPT-MAC-3K
AC INPUT POWER MODULE • 3kW
Hot-swappable AC input module for the Titan Transmitter platform. Dual modules provide N+1 redundancy — swap a failed module in minutes, not hours, without powering down the system.
| Power | 3,000W per module |
| Swap Type | Hot-swappable |
| Indicators | RF, Fault, Power LEDs |
RECEIVER SERIES
Fault-Isolated Power at the Point of Load
Titan Receivers convert Digital Electricity® back to usable DC power at the rack or device. Each receiver operates independently — a fault at one rack never cascades to another. Hot-swappable modules deliver a 2-hour MTTR SLA that traditional power infrastructure simply can’t match.

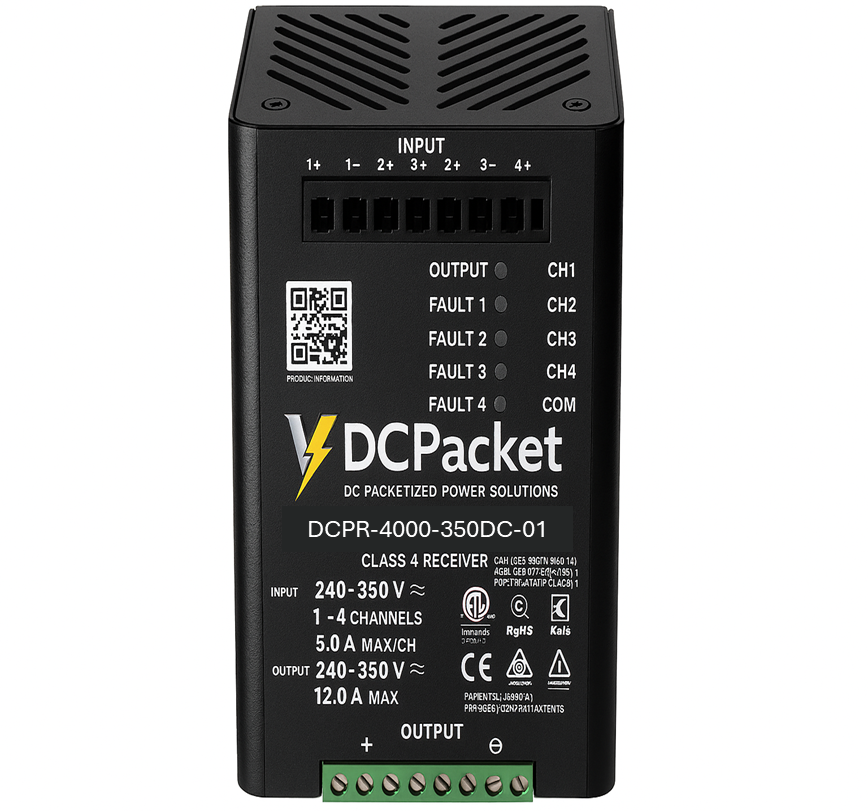

🔌 DCPR-4000-350DC-01
HIGH-VOLTAGE RECEIVER • 4kW
The heavy hitter. Delivers 240–350V DC output for high-density GPU racks and direct 800VDC-path infrastructure. Four independently fault-managed input channels with per-channel status monitoring.
| Input | 240–350V DE, 4 channels |
| Output | 240–350V DC, 12.0A max |
| Per Channel | 5.0A max per channel |
| Indicators | Output, Fault, CH1–4, COM |
⚡ DCPR-2500-56DC-03
STANDARD RECEIVER • 2.5kW
The workhorse of the product line. Converts Digital Electricity® to 51–57V DC for standard server and networking equipment. Four-port design for flexible power distribution with individual fault protection per channel.
| Input | 240–350V DE, 4 channels |
| Output | 51–57V DC |
| Connectors | 4-port with status LEDs |
🌐 DCPR-500-56DC-01
EDGE RECEIVER • 500W
Compact receiver for edge, IoT, and distributed deployments. Same Digital Electricity® fault protection in a smaller form factor — ideal for access points, sensors, and remote compute nodes where safe, reliable power over long cable runs is critical.
| Input | 240–350V DE, 4 channels |
| Output | 51–57V DC, 10.0A max |
| Use Case | Edge, IoT, Distributed |
PLATFORM ARCHITECTURE
How Titan Products Work Together
AC power enters the Transmitter. Digital Electricity® travels over standard cabling. Receivers deliver fault-isolated DC power at the rack.
PRODUCT COMPARISON
Full Specifications at a Glance
All products certified to UL, CE, FCC, RoHS, and UKCA standards. Full datasheets available upon request.
BUILT DIFFERENT
Why Enterprises Choose Titan
⚡ <10ms Fault Isolation
Hardware-level protection that isolates faults before they reach your GPUs. No arc flash. No cascading failures. No destroyed $40K assets.
🔧 2-Hour MTTR SLA
Hot-swappable modules mean a failed unit is replaced in minutes. No rewiring, no downtime, no electrician callback. Two-hour mean time to repair.
💰 $44M+ Capital Saved
On a 10.8 MW deployment: eliminate redundant switchgear, reduce copper by up to 60%, and compress deployment timelines from 18 months to weeks.
🔌 NEC Class 4 Compliant
Safe enough for unlicensed installation. Powerful enough for 120kW+ rack densities. Digital Electricity® meets the strictest safety standards while delivering enterprise-scale power.
📊 Real-Time Telemetry
Every transmitter and receiver reports power quality, fault events, and system health in real time. Full per-channel, per-rack visibility for your operations team.
🚀 800VDC Ready
Operating at 350VDE today with a clear path to NVIDIA’s Kyber 800VDC standard. The same Titan architecture — ready for tomorrow’s AI density without ripping and replacing.
READY TO SEE IT IN ACTION?
See Digital Electricity® in Action
Schedule a 30-minute technical review with one of our Design Engineers. We’ll walk you through the Titan Platform and spec a deployment for your facility.
